lmcad

Overview

lmcad is an experimental native CAD host that models OpenCASCADE solids, renders PNG and APNG images, and exports STL and OBJ meshes.

Download the latest release for Linux x64 or Linux arm64. For source builds, use the OCCT build instructions; they build OpenCASCADE 8.0.1 into a reusable prefix before configuring lmcad.

Source repository
Report an issue
MIT license
Tutorial: compile a script, render a looped scene and create a tween animation.
User guide: CLI, schema, outputs, limits and troubleshooting.
Skill: practical guidance for generating and checking lmcad scripts.

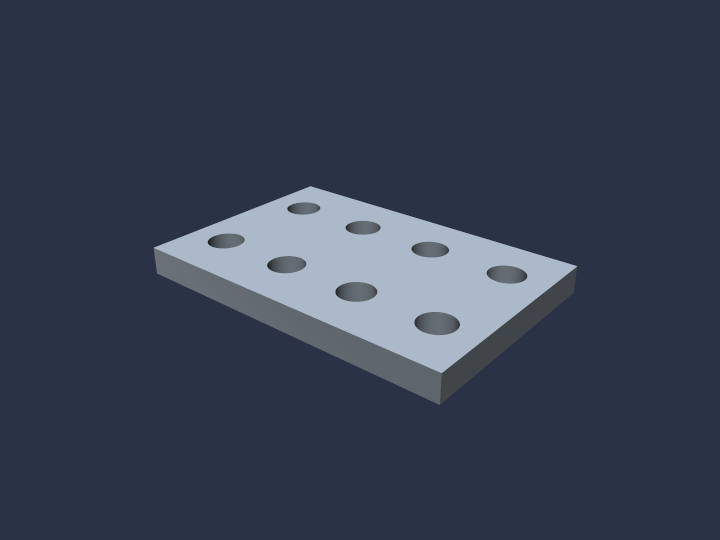

Gray rectangular plate with eight round through-holes — A plate cut with a loop of cylinder bores.

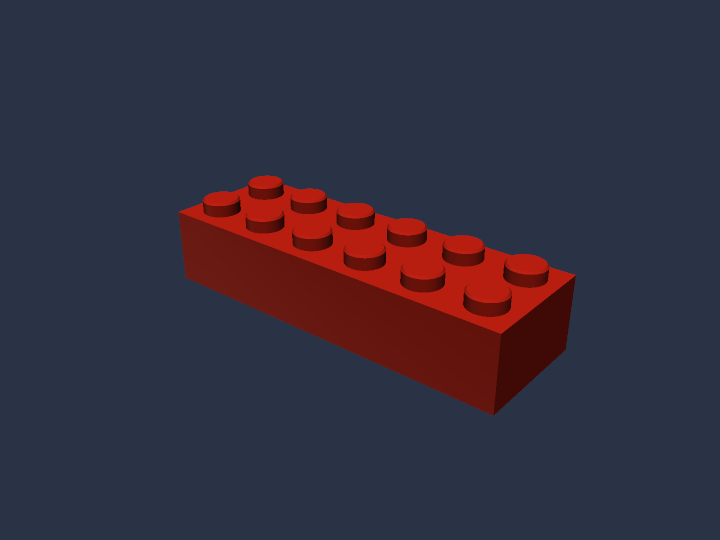

Red rectangular brick with two rows of raised cylindrical studs — A patterned brick built by looping over unions.

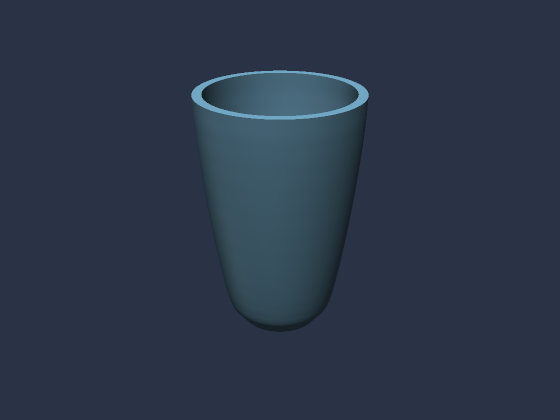

Blue tapered hollow vase with an open top — A hollow vessel made from a revolved sketch.

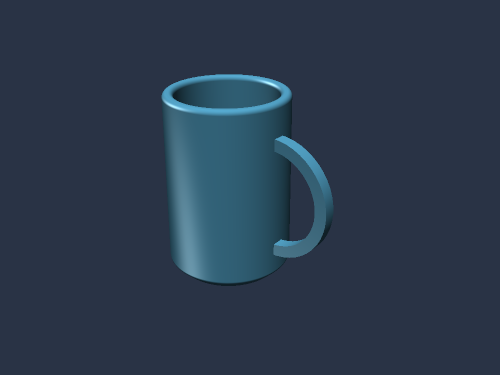

Blue hollow mug with a rounded handle — A revolved cup body with a fused handle.

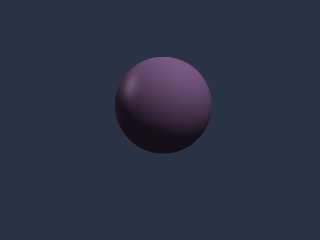

Shaded sphere at an intermediate animation position — One frame from a CSV-keyframed tween.
